Case Study: How We Restored Connectivity for a Pretoria Commercial Complex After Vandalism Damage

Cable theft costs South African telecoms operators an estimated R283 million per year, according to industry figures published in 2024. The economic harm extends far beyond the cost of the stolen cable itself. Every severed fiber trunk cable means tenants, businesses, and residents lose internet connectivity, VoIP telephony, and access to cloud-hosted services for as long as the fault goes unrepaired.

The case described here is representative of the type of emergency repair work our team carries out across Gauteng. Details have been drawn from a real incident type but identifying information has been adjusted to protect the property owner's privacy.

The Problem: A Complete Connectivity Outage

A 12-tenant commercial complex in Centurion, Pretoria contacted us after losing all fiber connectivity across the building. The property manager reported that the outage had been sudden and total: all tenants lost internet access simultaneously at approximately 02:30 in the morning, which suggested the fault was caused by a single external event rather than an equipment failure inside the building.

The cause was quickly confirmed when the property's security footage was reviewed. Vandals had targeted the building's external cable route in an apparent attempt to steal what they believed was copper cable. The route in question carried a 24-fiber single-mode trunk cable that served as the sole backhaul link feeding the building's main distribution frame (MDF). When the vandals cut through the outer jacket and saw fiber strands rather than copper conductors, they abandoned the attempt, but the cable had already been severed completely.

By the time the property manager discovered the damage at 07:00, the tenants had already been offline for more than four hours. A medical billing practice could not process patient invoices. A logistics company could not access its fleet management platform. A financial services tenant was unable to make or receive VoIP calls. Point-of-sale terminals across the ground-floor retail units had lost contact with their payment processors entirely. The pressure to restore service was immediate.

"All twelve tenants were offline. No payments, no calls, no cloud access. Every hour of downtime was translating directly into lost revenue for our tenants."

Initial Assessment and Fault Location

Our team arrived on site within two hours of receiving the call. The first task was not to begin repairs but to determine precisely where the damage was located and whether secondary damage existed along the cable route. Attempting to repair a fault without a thorough assessment risks missing additional damage points, which can cause a repeat outage within days of the initial repair.

We connected an OTDR (Optical Time-Domain Reflectometer) to the fiber patch panel at the building MDF. An OTDR sends short pulses of laser light down the fiber and measures the reflections that return at different time intervals. By calculating the speed of light in the fiber medium, the instrument converts those time measurements into distance readings, allowing the operator to identify exactly where along the cable any anomaly, break, or splice exists.

The OTDR trace showed a complete break event with a high reflectance signature at 47 metres from the MDF. A complete break produces a characteristic tall reflectance peak followed by a noise floor, indicating that all transmitted light is being reflected back from the broken end face rather than continuing down the cable. The distance reading was accurate to within one metre.

A second anomaly appeared on the trace at approximately 59 metres from the MDF. This was a secondary damage point at a pre-existing splice closure that had been disturbed during the vandalism incident. The closure had not been fully cut through, but the splice protectors inside had shifted, introducing additional loss. We marked both locations before beginning any repair work.

Using the OTDR trace as a guide, we were also able to verify that the remainder of the cable route beyond 59 metres showed normal attenuation with no further anomalies. The fault was entirely contained within the 12-metre section between the two damage points. This confirmation was important because it allowed us to plan a targeted repair rather than an extensive route replacement.

The Repair Process: Fusion Splicing and Re-termination

With the fault locations confirmed, we excavated a short section of the cable route to expose the damaged segment. The external jacket had been cut cleanly by a blade at the primary break point, leaving the two cable ends in reasonably good condition for repair. At the secondary damage point, the splice closure had sustained physical impact, and four of the fibers inside had developed micro-cracks in their buffer coating.

The repair process proceeded in the following sequence.

We cut out the damaged 8-metre cable section in its entirety rather than attempting to repair it in place. Attempting to work with a physically compromised cable segment risks leaving latent weaknesses that cause further failures within months.

We stripped the outer jacket and buffer coating from each of the four cable ends that required splicing, working back to undamaged fiber. The stripped ends were then cleaved using a precision fiber cleaver. The target was an angular error below 0.5 degrees on each fiber end face. Cleave angle is critical because any deviation above 0.5 degrees introduces air gap at the splice point, which increases insertion loss and reduces long-term reliability. We inspected each cleaved end under magnification before proceeding.

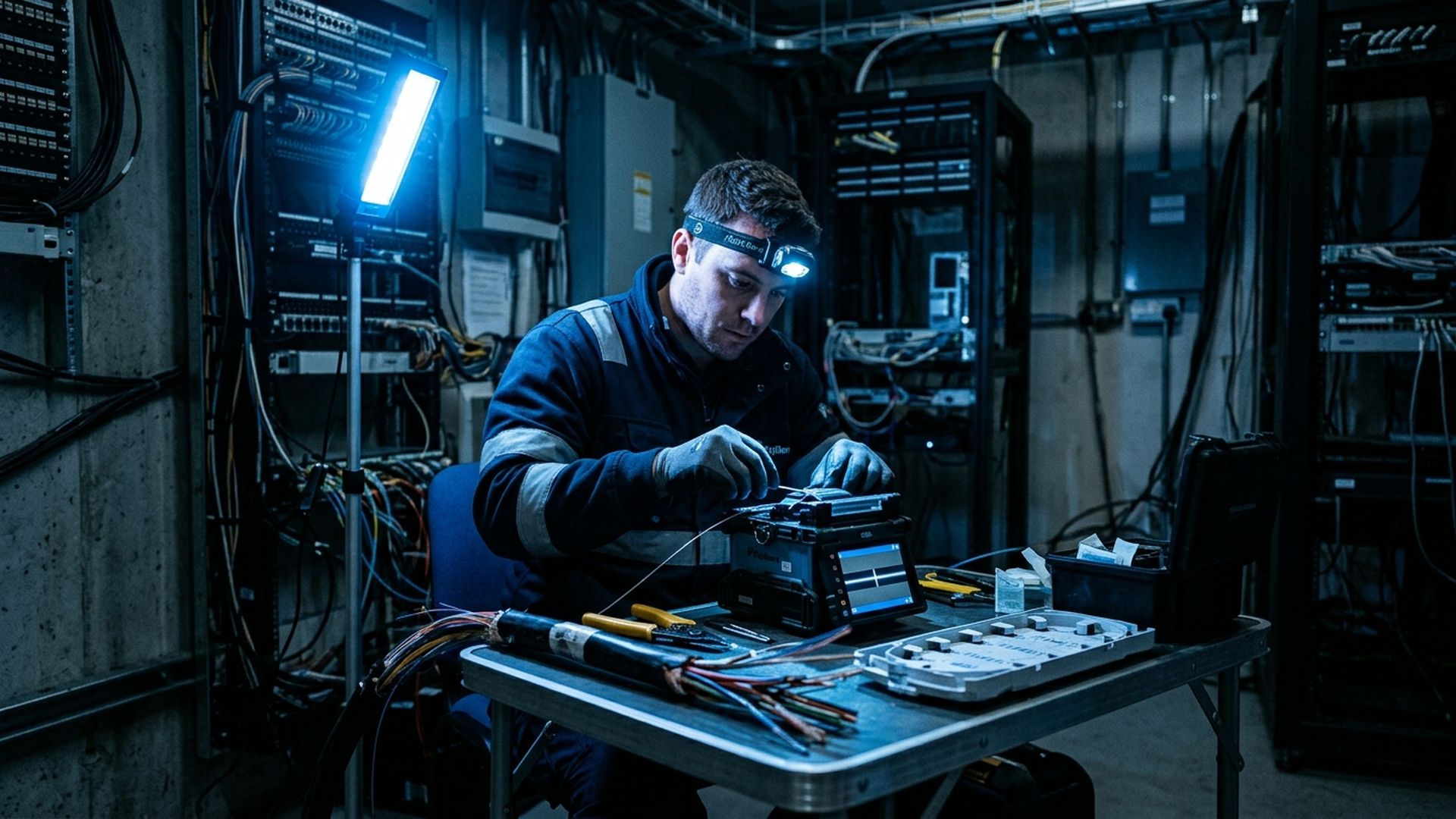

Each fiber pair was joined using a fusion splicer. The instrument uses a high-voltage electric arc to melt the two glass fiber ends together, while an automatic alignment system uses visual feedback from two perpendicular camera angles to align the fiber cores to within a fraction of a micron before firing the arc. After each splice, the splicer estimated the splice loss. All 24 fibers achieved splice loss below 0.1 dB per splice, which is within the acceptable range for single-mode fiber specified by IEC and TIA standards.

Heat-shrink splice protectors were applied over each completed splice and shrunk in place using the splicer's built-in heating element. The completed splice array was then housed in a new weatherproof re-enterable splice closure with stainless steel hardware, replacing the damaged unit at the secondary fault location. The new closure was mounted to the cable route structure using tamper-evident fixings.

At the building MDF, four of the 24 patch cord connections had sustained damage when the cable was pulled during the vandalism incident. The damaged patch ends were re-terminated using pre-polished push-pull connectors rather than field-polished connectors, which eliminates the risk of poor polish quality introducing additional loss at the termination point. Each connector end face was inspected under a 400x digital microscope and compared against the pass/fail criteria defined in IEC 61300-3-35 before being mated into the patch panel.

Verification and Testing

Completing the physical repair is only half of the job. Before declaring the circuit restored, every fiber must be verified end-to-end to confirm that the entire loss budget is within specification. A repair that looks correct under the microscope can still fail a power budget test if a connector end face has a surface contaminant or if the splice loss estimate from the splicer was optimistic.

We ran an OTDR trace from both ends of the repaired cable for each of the 24 fibers. Bi-directional OTDR testing is important because a one-directional trace can mask certain splice anomalies that appear only when light is transmitted in the opposite direction. All 24 fibers passed their end-to-end loss budget verification, with measured loss values within acceptable tolerance.

We then used a calibrated power meter and light source to take absolute power level readings at the MDF patch panel and compare them against the baseline readings recorded during the original installation. All readings came in within 0.3 dB of the original baseline, confirming that the repair had introduced no meaningful additional loss into the link.

Full connectivity was confirmed at the building's core switch at 12:05. Total elapsed time from the initial call to connectivity restoration was 5 hours.

Hardening Recommendations

Restoring connectivity addressed the immediate crisis, but the property manager asked us to assess the vulnerability of the cable route and provide recommendations to reduce the risk of a repeat incident. Cable theft and vandalism affecting telecommunications infrastructure in South Africa is not a one-time event. Buildings that have been targeted once are statistically more likely to be targeted again, particularly when criminals observe that the first incident produced no deterrent response.

Our first recommendation was to replace the standard single-mode cable on the affected external section with SWA (Steel Wire Armoured) fiber optic cable. SWA cable contains a layer of helically wrapped steel wires beneath the outer jacket that provides substantial mechanical protection against cutting with hand tools. A standard blade or pair of bolt cutters that can sever conventional fiber cable in seconds will not penetrate the armoured layer without significant effort and noise, which is itself a deterrent.

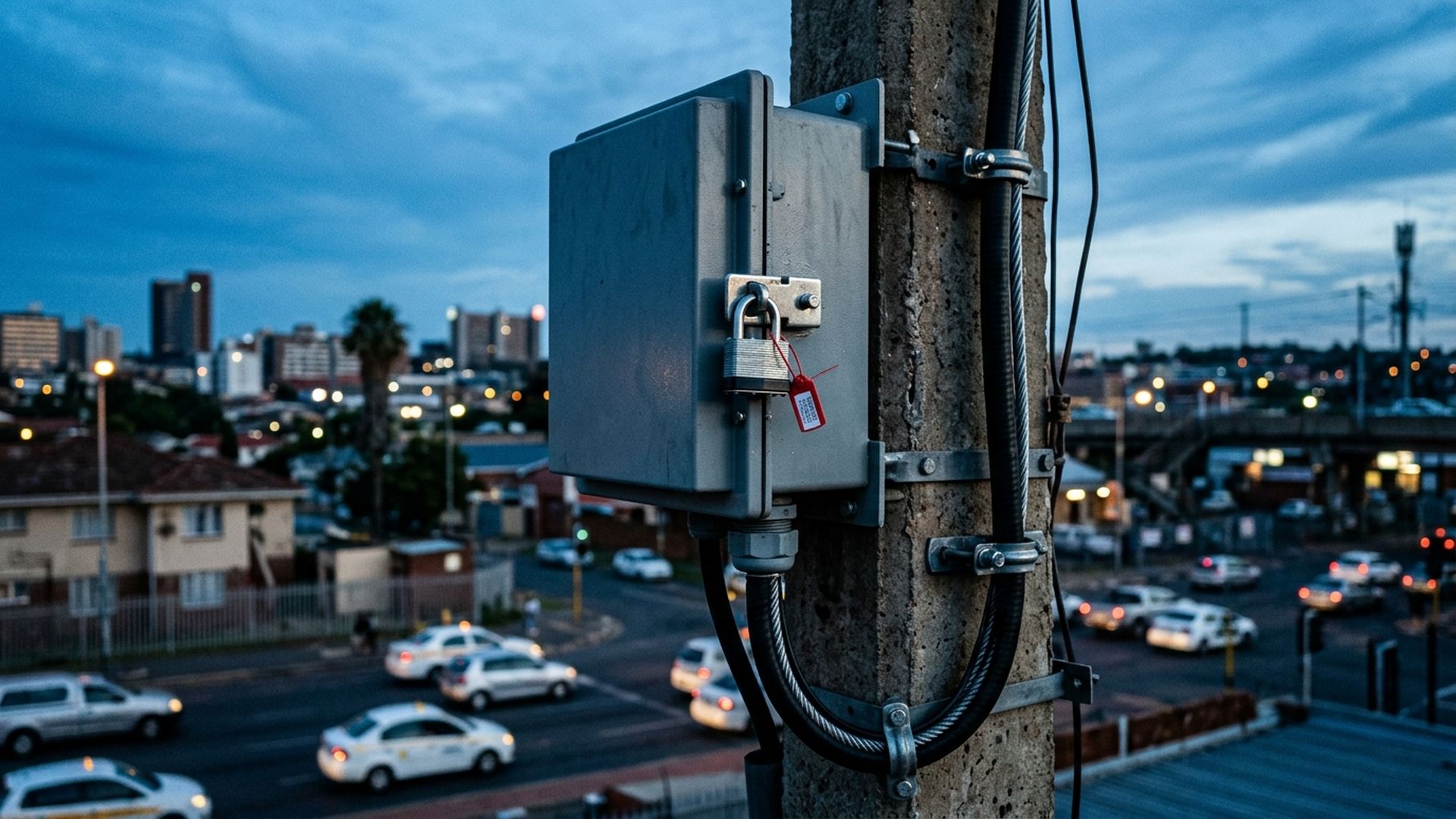

We also recommended that the new splice closure and any above-ground cable fixings be housed in an IK10-rated steel enclosure with tamper-evident locks and anti-drill plates. IK10 is the highest impact resistance rating under IEC 62262, indicating the enclosure can withstand 20 joules of impact energy without deformation. A standard padlock on a mild steel box provides essentially no deterrent to a determined vandal; an IK10-rated enclosure with a shrouded lock requires specialised tools and considerably more time.

The property's existing CCTV coverage did not include the external cable entry points on the northern perimeter. We recommended extending CCTV coverage to include visible lines of sight to both the cable entry point and the main splice closure location. Visible camera infrastructure serves as a passive deterrent, and the footage provides evidence for SAPS reports and insurance claims when incidents do occur.

Finally, we recommended establishing a diversely routed secondary fiber path between the building and the street-level access point. A single cable route represents a single point of failure that can be exploited deliberately or damaged accidentally. A secondary route using a different physical pathway, even if it carries only a lower-capacity backup link, eliminates the scenario in which a single vandalism event takes the entire building offline.

The Outcome

All 12 tenants were back online by midday on the day of the incident. No data was lost as a result of the outage because the tenants' cloud-hosted systems and on-premises servers had maintained their state through the connectivity interruption. The property management company signed a preventive maintenance agreement with CT Communications covering quarterly OTDR verification, enclosure inspections, and a priority response commitment for any future faults. The armoured cable replacement and secondary route installation were completed within two weeks of the initial repair.

This case is a useful illustration of why investing in professional fault location equipment and trained engineers produces a measurably faster repair outcome than a trial-and-error approach. Using OTDR instrumentation to pinpoint the fault to within one metre before touching the cable route saved at least an hour of unnecessary excavation and reduced the overall time tenants spent offline.

Sources and References

1. Fluke Networks, "OTDR: Your Ultimate Troubleshooter," Cabling Chronicles Blog. flukenetworks.com
2. Hengtong Global, "How to Repair Fiber Optic Cable: A Step-by-Step Guide." hengtongglobal.com
3. Yamasaki OT, "OTDR Fault Diagnosis," March 2025. yamasakiot.com
4. Fluke Networks, "Troubleshooting Fusion Splices," Cabling Chronicles Blog. flukenetworks.com
5. The Fiber Optic Association, "OTDR Reference Guide," Technical Reference Library. thefoa.org
6. EXFO, "OTDR Testing for Communication Service Providers." exfo.com
7. FibreLink, Gauteng Fiber Repair and Installation Services. fibrelink.co.za
8. Developing Telecoms, "Southern African Operators Count the Cost of Copper and Battery Theft," 2024. developingtelecoms.com
9. FS.com Community, "What is Armored Fiber Optic Cable?" community.fs.com
10. Microcare, "Clean and Inspect: What IEC 61300-3-35 Means to You," Resource Center. microcare.com
